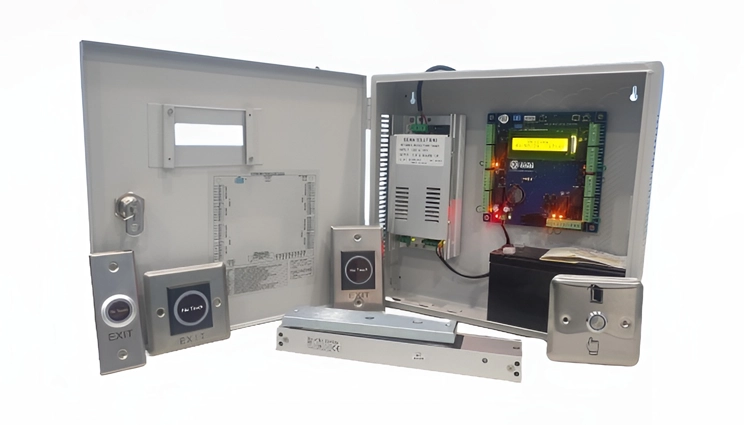

Door Interlocking System (DIS)

The Door Interlock System ensures secure and controlled access by allowing only one door to open at a time. It includes electronic locks, sensors, alarms, LCD, and keypad—ideal for high-security and contamination-controlled areas.

Specification

Technical Specification

Sr No Specification Products Details
01 Power 230V AC to 12V DC / 3A SMPS
02 Board Input/Current 12V DC / 2.5A
03 Display 16×2 LCD, 4×4 Matrix Keypad
04 Outputs 4x Electronic Locks, Buzzer, Extra Relay, Siren
05 Inputs Fire, Emergency, Tamper, Magnetic Contacts (4 Doors)
06 Status Indication Door open/close LEDs, 12V Buzzer
07 Clock Real-Time Clock (RTC)

Features

Key Features

Secure Access Control
Secure Access Control
Integrated Alarms & Indicators
Integrated Alarms & Indicators
Emergency & Fire Input Support
Emergency & Fire Input Support
User-Friendly Interface
User-Friendly Interface
Reliable Power & Build
Reliable Power & Build
Use Cases
  • Cleanrooms & Labs
  • Server rooms & Data centres
  • Bank vaults
  • Pharmaceuticals & Industrial zones
USP
  • True Door Interlocking – Only one door opens at a time for maximum access control.
  • Built-in Display & Keypad – Integrated LCD and keypad for easy monitoring and control.
  • Emergency & Fire Alarm Integration – Enhances safety with direct input support.

Faqs

Frequently Asked Question

No, only one door can open at a time to maintain interlock security.

Yes, it includes inputs for both fire and emergency override functions.

Yes, it has a built-in 16x2 LCD display and 4x4 matrix keypad for easy operation.
