Linux-Based, IP-Enabled Intelligent Alarm System

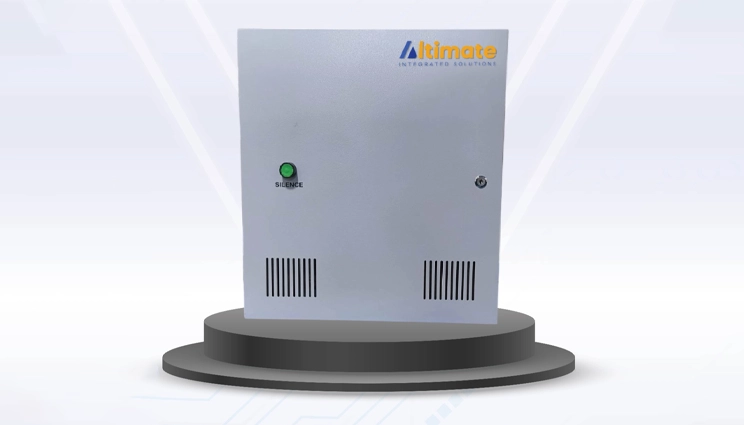

The Altimate AIS-ESP-33Z-AI is an advanced alarm panel built on a Linux platform, designed to deliver robust security with intelligent monitoring capabilities. It supports up to 33 zones, expandable to 48, and features IP connectivity, web-based configuration, video analytics, and SIA-DC9 protocol for third-party CMS integration.
| Sr No | Specification | Products Details |
|---|---|---|
| 01 | Operating System | Linux-based |
| 02 | Input Zones | 16 zones on main board 17 zones via expander Expandable up to 48 zones |
| 03 | Relay Outputs | 5 potential-free relay outputs Used for Hooter, AC, Lights, and Electromagnetic Lock (EML) |
| 04 | Communication Interface | Web-based UI |
| 05 | Keypad Interface | RS485 numeric keypad (optional) for ARM/DISARM |
| 06 | Smoke Zone Support | 1–2 zones (for smoke/heat detectors and MCPs) |
| 07 | Alert Types | AC Fail UPS Fail Low Battery Warning |
| 08 | Power Supply | Dual Output SMPS 13.85VDC @ 8A 5VDC @ 3A |
| 09 | Battery Backup | Supports 2 × 12VDC 12AH batteries |
| 10 | Cabinet Provisions | Space for DVR/NVR and Router Mounting |
| 11 | Lock Control | Supports Electromagnetic Lock (EML) connectivity |
Up to 48 zones (33 standard + 15 expandable).
Yes, for helmet, mask, loitering, and crowd detection.
Through a web-based interface via browser.
Yes, via SIA-DC09 protocol.
Yes, supports 2 × 12V 12AH batteries.
